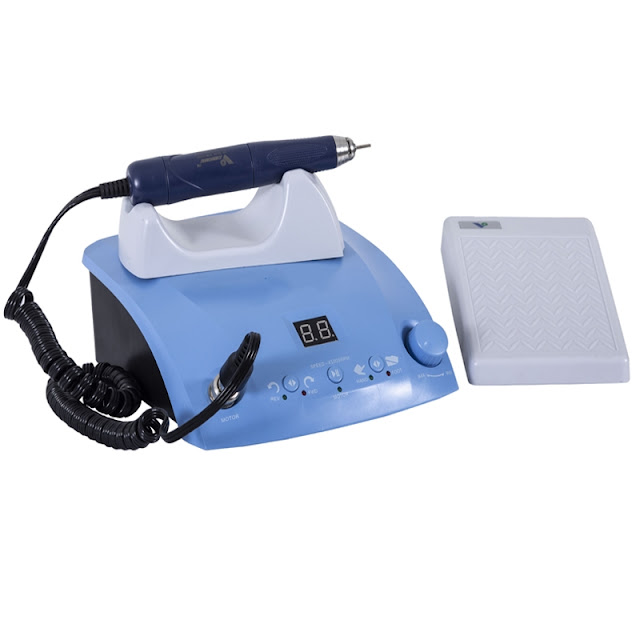

Brushless micro motor can be application of laboratory dental equipment for polishing the dental cobalt chrome teeth,zirconia workpiece,denture etc,it can be also applied in the nail cosmetic,industrial polishing etc.
Safety Instructions
A Micromotor Handpiece is a high speed rotary power tool which can be dangerous and cause serious injury if it is not used properly. NEVER operate it without wearing eye protection.
• ALWAYS wear proper eye and face protection.
• ONLY use accessories rated for 50,000 rpm or higher speeds when operating this micromotor. Follow the Allowable Rotation Speed chart on page 9 of this manual for safe operation when using accessories with head diameters of more than 3/32″ (2mm).
• ALWAYS observe the manufacturer’s maximum speed rating when using any accessory.
• NEVER use or continue to use any accessory which appears to be damaged, loose, vibrating, bent, or out of balance. Inspect each accessory for cracks or flaws before use.
• ALWAYS insert the shank or arbor of an accessory or mandrel into the collet or chuck of the handpiece as far as possible in order to provide proper support and close the collet or chuck securely.
• NEVER use excessive side pressures which may tend to bend or break the shank or arbor of an accessory. Let the speed of the accessory do the work.
• DO NOT stall the motor by jamming or using excessive pressure on the mounted point, buff, wheel or accessory. This can result in damage to the motor.
• WEAR a dust protector, mask or respirator to prevent the inhalation of harmful dust or debris from grinding, carving or other operations performed with this power tool.
• NEVER operate with a damaged power cord. If the power cord or plug to the handpiece is damaged, repair or replace immediately.
• USE a dust collector (vacuum system) to pull sawdust, grinding dust, or other debris away from the work area and the micromotor intake vents.
• NEVER turn on or start the Handpiece while chuck is in open (unlocked) position. This can damage the handpiece. Make sure that a bur is installed and secured in the collet, that the spindle is NOT locked and that the bur can spin freely. Always operate and store it with a bur or other accessory in the chuck and with the chuck in the closed position.
• DO NOT operate the handpiece in the presence of any flammable liquid or gas.
Using the Motor Handpiece
Changing Accessories
Burs and other accessories can be inserted or removed from the handpiece collet when the collet is open. To open the collet:
1. Turn off the motor using the Motor On/Off Switch 3 and the Power Switch.
2. Twist the Chuck Handle in the “R” or release direction (clockwise) until the raised indicator bar clicks into the far left mark on the silver center ring.
3. Remove the accessory and replace with another accessory. Insert the ‘new’ accessory shank fully into the collet for maximum support. You should feel it touch the back of the collet.
4.Twist the knurled Chuck Handle toward the “S” or secure position by turning counter-clockwise until it snaps to lock the collet. The accessory and the collet will be able to spin freely. The raised collet indicator bar will be above the far right mark in the silver center ring. Note: The intermediate position between “S” and “R” holds both the spindle and the accessory in a locked position. This is useful to unscrew an over-tightened mandrel screw.
Precautions:
1, the machine has intelligent protection function, no connection handpiece, motor damage,controller failure, high temperature, will start the automatic protection system. Then the display window will flash. When protection occurs first turn off the power switch, carefully check the condition of the various parts, troubleshooting before use.
2, follow your power supply AC110V model or AC220V, it may cause the controller to burn
3, if the machine does not work, check the power cord, handpiece, whether the foot switchplugged in, whether the fuse burned power outlet, if it is over-temperature protection, and other equipment to lower the temperature before use
4, the device when not in use, turn off the power switch
5, try to protect the handpiece, the handpiece is very sophisticated equipment
6. Do not talk to control for other devices, otherwise it will cause the controller is not working properly or is damaged.
